PH18 1kva~5kva

• Input voltage: 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
• Output voltage: 230 VAC ± 5%
• Optional DC voltage: 12V/24V/48V
• AC charge current: 10A/20A/30A/60A
• Solar charge controller: 50A
• Waveform: Pure sine wave
• Transfer time: 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
• Inverter type: PWM charge inverter

Features:

• Selectable input voltage range for home appliances and personal computers
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Parallel operation with up to 6 units only available for 4KVA/5KVA
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Optional Remote Control Panel available

PH20 1kva~5kva

• Input voltage: 170-280 VAC (For Personal Computers);
• 90-280 VAC (For Home Appliances)
• Output voltage: 230VAC ± 5%
• Optional DC voltage: 12V/24V/48V
• AC charge current: 15A/20A/30A/60A
• Solar charge controller: MPPT 18A/25A/60A
• Waveform: Pure sine wave
• Transfer time: 10 ms (For Personal Computers); 20 ms (For Home Appliances)
• Inverter type: MPPT charge inverter

Features:

• Pure sine wave inverter
• Built-in MPPT solar charge controller
• Selectable input voltage range for home appliances and personal computers
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Parallel operation with up to 6 units only available for 4KVA/5KVA
• Optional Remote Control Panel available

PH20 Pro 2kva/3kva

• Input voltage: 120 VAC or 230 VAC
• Output voltage: 110/120 VAC ± 5% (User selectable)
• Optional DC voltage: 24V/48V
• AC charge current: 10A/15A/20A/30A
• Solar charge controller: 60A
• Waveform: pure sine wave
• Transfer time: 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
• Inverter type: MPPT charge inverter

Features:

• Pure sine wave inverter
• Built-in large MPPT solar charge controller
• Selectable input voltage range for home appliances and personal computers
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Optional remote panel available

PL12 PRO 600va~1200va

• Input voltage: 100-290VAC±5VA / 70~145Vac ±5Vac
• Output voltage: 150-255VAC±5Vac / 90~127Vac ±5Vac
• Optional DC voltage: 12V/24V
• AC charge current: 10A/20A/Max.
• Solar charge controller: Adjustable 10A~50A(MAX)
• Waveform: Pure sine wave
• Transfer time: Max 10ms
• Inverter type: PWM charge inverter, low frequency inverter

Features:

• •Super wide input voltage range,strong ability to adapt to the environment
• •Built in solar charger controller(Max 50A)
• •pure sine wave output
• •LCD display with plenty content
• •CPU controlled
• •Selectable charging current based on applications

PL16 8kw/10kw/12kw

• Input voltage: 185VAC-275VAC
• Output voltage: 230Vac ±10% rms
• Optional DC voltage: 48V/72V
• AC charge current: 35A/50A(5 stages adjustable charging current)
• Solar charge controller: Optional 40A MPPT
• Waveform: Pure sine wave
• Transfer time: 20ms (Max)
• Inverter type: Low frequency solar inverter
• LCD digital display show voltage, load and battery information in real time.
• Peak power is three times of rated power.
• Can work with inductive load such as air conditioner, motor door and so on.
• Pure sine wave output, available for sensitive load.
• 5 stages progressive charging
• Fast and powerful charger with 35A and 50A
• Built in charge controller 40A(Optional)
• Accept generator’s energy output.

Features:

• High power factor 0.9, low power consumption.
• Automatically transfer between battery and line modes.
• Microprocessor control guarantees high reliability.
• Remote control function.
• Protection against: Over load, over temperature, over charging, low battery

PL18 1000W~6000W

• Input voltage: 95-126VAC OR 194-253VAC±4%
• Output voltage: 110/120/130VAC OR 220/230/240VAC±10%rms
• Optional DC voltage: 12v/24v/48v
• AC charge current: 20A/35A/50A/75A/90A(According to the inverter model)
• Solar charge controller: External charge controller
• Waveform: Pure Sine Wave
• Transfer time: <15ms
• Inverter type: Low frequency solar inverter

Features:

• LCD digital display show voltage, load and battery information in real time.
• Peak power is three times of rated power.
• Can work with inductive load such as air conditioner, motor door and so on.
• Pure sine wave output, available for sensitive load.
• 4-step progressive charging, 7 battery type selector.
• Fast and powerful charger with 35A and 70A/90A.
• Accept generator’s energy output.
• High power factor 0.9, low power consumption.
• Automatically transfer between battery and line modes.
• Microprocessor control guarantees high reliability.
• Remote control function.
• Protection against: Over load, over temperature, over charging, low battery

PL20 1kw~12kw

• Input voltage: 85-130VAC for 120VAC ; 185-265VAC for 230VAC
• Output voltage: 120VAC/230VAC ±10%
• Optional DC voltage: 12V/24V/48V
• AC charge current: 20A/35A/50A/70A/90A (5 stages adjustable charging current)
• Solar charge controller: 1KW 40A;2~12KW 60A
• Waveform: sine wave
• Transfer time: 15ms(max)
• Inverter type: solar inverter wall mount

Features:

• AC/Solar charging hybird off grid inverter;
• LED/LCD display,Enhanced functions setting via LCD,Man-machine intelligent design;
• Built-in 40A/60A optional MPPT solar charge controller;
• Remote external dispaly panel realize remote operation;
• Five stages adjustable AC charging current,AC charging also can be closed;
• AC/DC priority modes can be set;
• Generator restart single(Dry contact);
• Three times peak power,strong loading capacity;
• Over load, output short circuit protection.

PV18 1000W~6000W

• Input voltage: 145-265VAC (220/230/240VAC)±4%;70-150VAC (110/120/130VAC)±4%
• Output voltage: (DC battery mode) 220/230/240VAC±2% ; 110/120/130VAC±2%
• Optional DC voltage: 12/24/48VDC
• AC charge current: 0-35A: 5A / 10A / 20A / 25A / 30A / 35A, 6 stages charging current adjustable
• Solar charge controller: Optional
• Waveform: sine wave
• Transfer time: Tranfer time ≤ 5ms
• Inverter type: solar inverter

Features:

• 3 times peak power, excellent loading capability
• Bulit-in AVR stablizer, supply the continuous stable outpout.
• Working efficiency more than 90%
• Tranfer time ≤ 5ms
• LCD display with multi-function buttons.
• Pure sine wave output wave form, input and output isolation design
• Intelligent fan (Automatically adjust rotating speed according to the internal temperature)
• Perfect protection against low voltage, over voltage, short circuit, over load and over temperature etc.

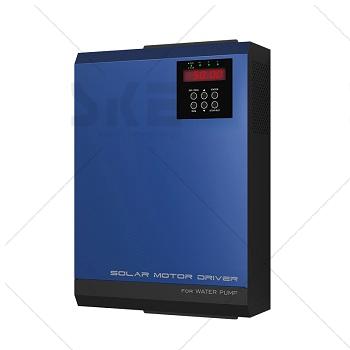

PW Water Pump Solar Inverter

• Input voltage: 350V~800V DC
• Output voltage: 3 x 380/400/415/440 VAC
• Optional DC voltage: 500~600 VDC
• AC charge current: no battery
• Solar charge controller: MPPT
• Waveform: sine wave
• Transfer time: working with mains power or solar power only at same time
• Inverter type: solar inverter for water pump three phase

Features:

• Built-in MPPT solar controller;
• Supports three-phase asynchronous motor;
• Compatible to utility or generator input;
• Built-in full protection and self-diagnosis;
• Soft start function prevents water hammer effect and extends system lifecycle;
• Comprehensive LEDs and display screen for real-time system status;
• Remote monitoring through RS-485.
